Common F-150 4×4 Actuator Problems And Their Solutions!

The Ford F-150’s 4×4 actuator may experience motor or fork problems, vacuum leaks, faulty parts, corrosion, clogged oil passage, worn gears, and electrical problems. Solutions include replacing faulty parts, cleaning the oil passage, and shifting into neutral before engaging the 4WD mode.

The goal of this article is to discuss the reasons for Ford F-150 4×4 actuator problems. Also, offer solutions to help your Ford F-150 get back on the road quickly.

F-150 4×4 Actuator Problem Symptoms

The 4WD actuator is a part of your  Ford F-150. It is responsible for activating or deactivating the four-wheel drive system. A 4WD actuator allows you to switch between two-wheel drive and four-wheel drive modes depending on your driving conditions. However, check If you are noticing one or more of the following symptoms:

Symptom 1: Difficulty in engaging or disengaging the 4-wheel drive system.

Symptom 2: Grinding or clicking noises from the front of your vehicle.

Symptom 3: Front wheels not engaging.

Symptom 4: Service 4WD light comes on.

Symptom 5: Complete failure of the 4-wheel drive system.

These symptoms indicate that there could be issues with your 4×4 actuator.

F-150 4×4 Actuator Problems

If you’re experiencing problems with the 4WD actuator, there are several potential reasons that could be causing the problem. Let’s explore 9 common reasons for 4WD actuator problems and their solutions.

To begin with the reasons and solutions, let’s first provide an overview.

Broken Actuator Motor or ForkReplace actuator motor or fork.
Vacuum leaksInspect and replace damaged vacuum lines and actuator diaphragm.Replace the vacuum pump or actuator if necessary.
Defective Control ModuleReplace the control module.
Actuator CorrodingClean and lubricate the actuator.Replace if severely corroded.
Electrical IssuesInspect electrical systems.Replace damaged wiring, fuses, or the actuator if necessary.
Clogged Oil PassageClean the oil passages.Use high-quality oil.Drive on paved roads whenever possible.
Excessively Worn GearsShift into neutral before engaging in 4×4 mode.
Malfunctioning Solenoid Replace the solenoid.
Faculty Actuator Replace with a new actuator.

Now, let’s discuss these reasons in detail along with their solutions.

Reason 1: Broken Actuator Motor Or Fork

A failed motor or a broken fork can prevent the system from engaging, which may result in difficulty in driving in slippery conditions.


  • Use a multimeter to test the actuator motor to determine if it is operating correctly.
  • Check the voltage and resistance of the motor by using a multimeter to ensure that it is within the manufacturer’s specifications.
  • Look for any visible signs of damage to the actuator motor.

If the actuator motor is faulty, it needs to be replaced. A new motor can be purchased from a dealership or from an auto parts store, and the repair can be done by a mechanic. To replace the actuator motor by yourself follow the given steps:

Tools Required:

  1. Screwdrivers
  2. Socket wrench set
  3. Pilers
  4. Wire cutters
  5. Multimeter

Step 1: Raise the vehicle using a jack and jack stands.

Step 2: Remove the actuator motor and disconnect the electrical connector.

Step 3: Remove the actuator fork using a socket and ratchet set.

Step 4: Inspect the fork and surrounding components for damage.

Step 5: If the fork is damaged, replace it with a new one.

Step 6: Install the new actuator fork and align it properly.

Step 7: Reinstall the actuator motor and secure it in place.

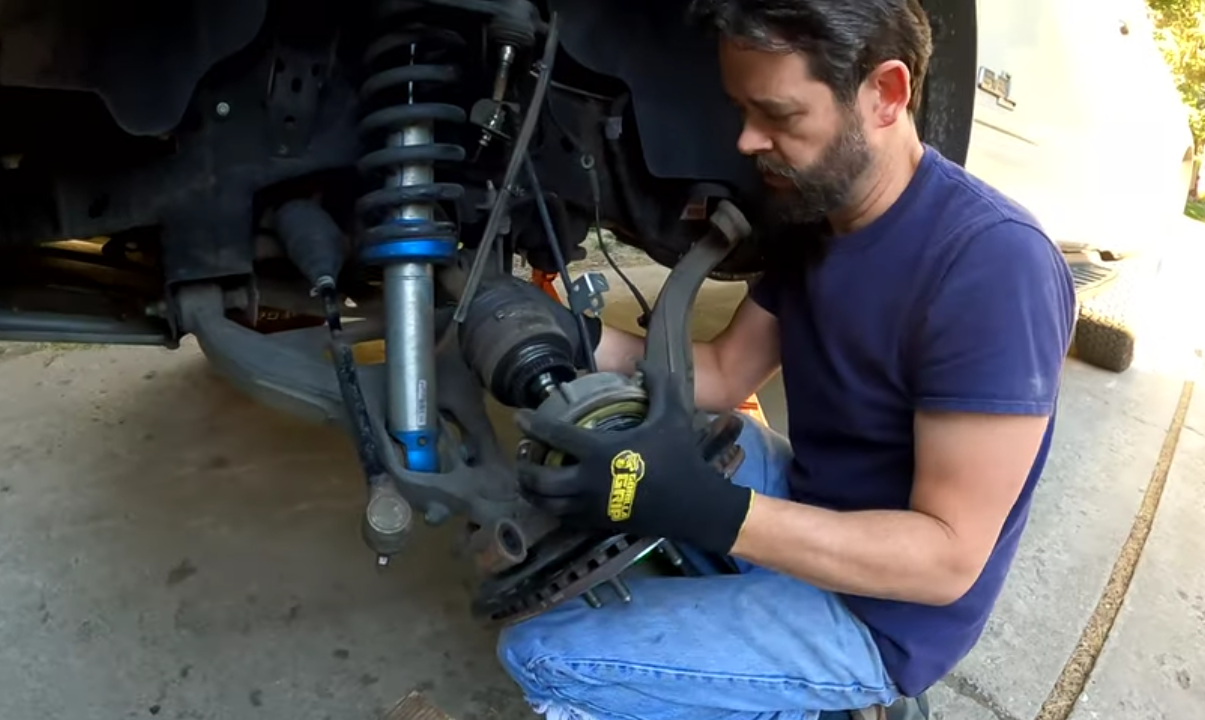

Source: brain151

Step 8: Use the jack to lower the vehicle down to the ground, and then carefully remove the jack stands from underneath.

Step 9: Test the four-wheel drive system to ensure it engages and disengages correctly.

Reason 2: Vacuum leaks

Some F-150 models use a vacuum system to engage the 4WD system. A vacuum leak can cause the 4WD actuator to malfunction. The primary cause for a vacuum leak is a cracked or broken vacuum line. The vacuum line supplies the actuator with the necessary vacuum pressure to engage and disengage the front axle.


Inspect the vacuum lines: Inspect all the vacuum lines attached to the actuator to make sure they are not cracked or broken. If any lines are damaged, replace them. Follow the given steps to replace:

Tools Needed

  1. Pliers
  2. Scissors
  3. Clamps

Step 1: Find the damaged line by looking for any cracks, holes, or damage in the vacuum line.

Step 2: Remove the damaged vacuum line by using pliers.

Step 3: Cut the new vacuum line to the same length as the old line by using a scissor.

Step 4: Connect one end of the new line with the actuator and another end with the vacuum source.

Step 5: Secure the vacuum line in place using clamps.

Step 6: Engage the 4wd system to ensure It’s working properly.

Check the vacuum pump: The vacuum pump is responsible for providing the vacuum pressure to the actuator. Check the pump for any damage or leaks and replace it if necessary by following the given steps:

Tools Needed

  1. Socket wrench set
  2. Pliers
  3. Screwdrivers

Step 1: Locate the vacuum pump near the engine.

Step 2: Remove the old vacuum pump by unscrewing the bolts that secure the pump to the engine. Disconnect the vacuum hoses that are attached to the pump.

Step 3: Install the new vacuum pump and screw the bolts to secure it to the engine. Reconnect the vacuum hoses with it.

Step 4: Turn on the engine and test the 4WD system.

That’s all, now you are done with the replacement of the vacuum pump.

Reason 3: Defective Control Module

The control module is responsible for sending signals to the actuator motor to engage or disengage the four-wheel drive system. If there is an issue with the control module, it can cause problems with the proper functioning of the four-wheel drive system.


If the control module is defective, there will be trouble in engaging the 4WD system. So, it needs to be replaced. You can buy the module from a car dealer or a store that sells auto parts, but it’s recommended to have a mechanic do the repair.

Reason 4: Actuator Corroding

The actuator can be prone to rust and corrosion due to exposure to water, salt, and other elements. This can lead to stiffness, seizing up, and electrical problems, ultimately leading to the malfunction of the actuator.


You have to replace the actuator if it has been significantly corroded.

Routine maintenance activities like lubrication and cleaning of the actuator can help in preventing corrosion and increasing its durability.

Reason 5: Electrical Issues

The actuator may experience electrical issues, such as blown fuses or wiring problems, due to wear and tear or exposure to moisture.


A technician should inspect the electrical system to determine the reason for the problem. This may involve replacing damaged wiring or fuses or replacing the actuator itself.

Reason 6: Clogged Oil Passage

The transfer case in your F-150 contains an oil passage. Oil lubricates the gears of the unit system. If the oil passage becomes clogged, it can restrict the oil flow which will lead to excessive friction and heat buildup. This can damage or even cause parts of the vehicle to fail.

To diagnose a clogged oil passage look for signs of overheating or burning smell in the transfer case.


Clean the oil passage and use high-quality oil. Also, try to refrain from driving on unpaved roads.

Reason 7: Excessively Worn Gears

The gears inside the transfer case of your F-150 will eventually wear out over time. This occurs especially if you frequently drive off-road or use the 4WD system for a long period as it creates stress on the gears. Also, if you don’t shift into neutral before engaging 4WD mode.

You can diagnose worn gears if you hear strange noises or vibrations while driving, especially in the 4WD mode.


Shift into neutral before engaging 4WD mode and avoid unnecessary use of 4WD mode. Also, drive at slower speeds in 4WD mode. And make sure to replace the worn gears as soon as possible by a professional mechanic.

Reason 8: Malfunctioning Solenoid

The actuator is typically controlled by an electronic solenoid that sends a signal to engage or disengage the actuator.

Check vacuum pressure from the top pipe when the truck is in 2WD and parked. There should be no vacuum on the top pipe when the car is in Park and 4WD is engaged. Thus, you will know if the solenoid is working.


If the solenoid is not working replace the solenoid by following the given steps:

Tools Needed:

  1. Socket wrench
  2. Screwdriver

Step 1: Locate the solenoid on the front axle of your vehicle.

Step 2: Remove the vacuum hose that is attached to the solenoid by using a screwdriver.

Step 3: Remove the old solenoid by unscrewing the bolts that hold it using a socket wrench.

Step 4: Place the new solenoid in its original position and fasten the bolts securely.

Step 5: Reconnect the vacuum hose using a socket wrench.

Step 6: Test the 4WD system.

Reason 9: Faulty Actuator

The actuator itself could be the problem due to mechanical failure. You have to change the actuator in this situation.


To replace the actuator, you can seek assistance from a qualified technician. However, here are the steps to replace the 4WD actuator on a Ford F150.

Tools Needed:

  1. Socket wrench
  2. Jack
  3. Pliers
  4. Screwdriver

Step 1: Firstly, you’ll need a jack to lift the vehicle off the ground, and then secure it in place with jack stands. Make sure to turn off the engine and remove the key from the ignition before proceeding.

Step 2: Locate the 4WD actuator under the front of the truck. The actuator is a cylindrical-shaped component that is connected to the front differential housing.

Step 3: Disconnect the electrical connector from the actuator by pressing the tab on the connector and pulling it out.

Step 4: To remove the actuator from the front differential housing, you’ll need to use a socket and ratchet to loosen the bolts that hold it in place. Make sure to take your time and be gentle as you pull the actuator straight out of the housing.

Source: MotorsandMischief

Step 5: Install the new actuator into the front differential housing by carefully aligning it with the mounting holes and pressing it in until it clicks into place.

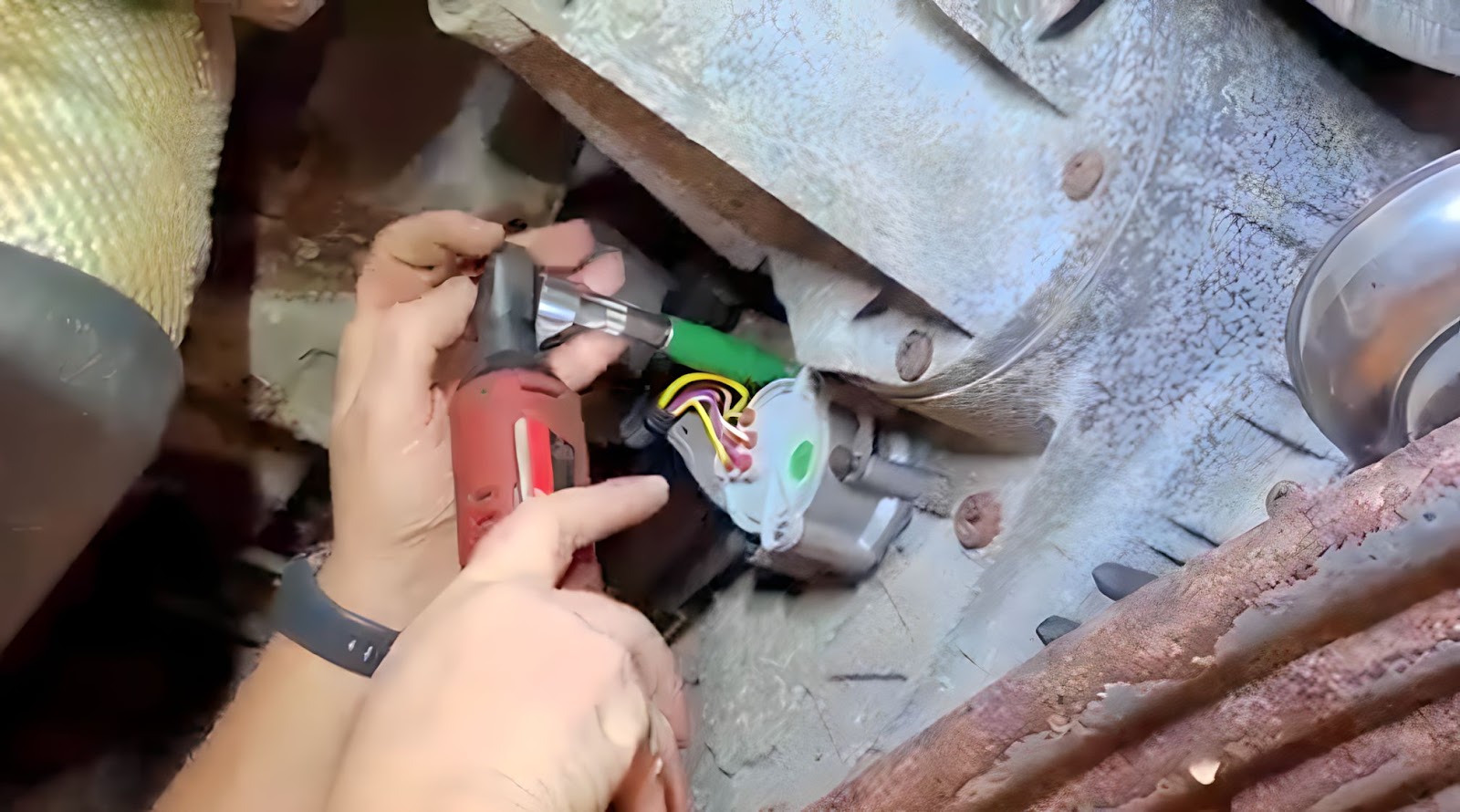

Source: MotorsandMischief

Step 6: Secure the actuator to the front differential housing by tightening the bolts with a socket and ratchet.

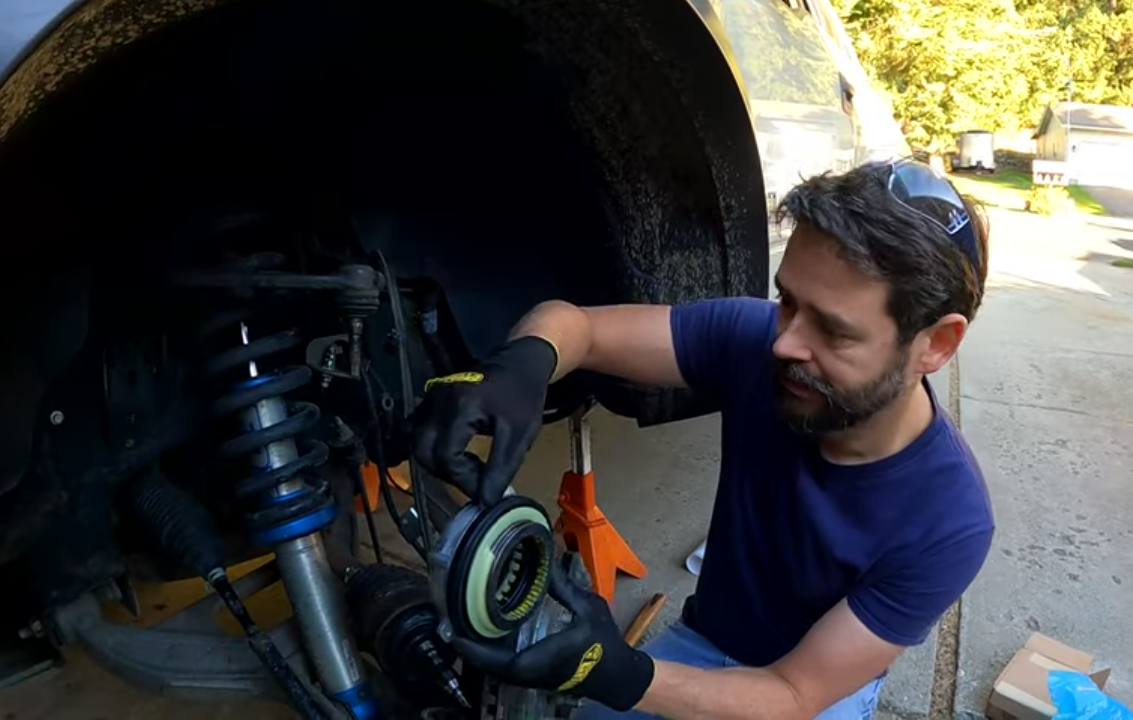

Source: MotorsandMischief

Step 7: Reconnect the electrical connector to the new actuator by pushing it in until it clicks into place.

Step 8: Test the 4WD system by turning on the engine and ensuring that it engages and disengages properly to ensure your vehicle is ready for any terrain or weather conditions you may encounter.

Step 9: If everything seems to be functioning correctly, you should turn off the engine of your truck and remove the key from the ignition. Then, you can lower the truck down from the jack stands.

After that, it’s a good idea to take your truck for a test drive to make sure that the 4WD system is working properly. This will help ensure that your truck is safe and ready to use.

Finally, it’s important to follow the instructions carefully. Also, make sure you take all the necessary safety precautions when working on your Ford F150’s 4-wheel drive system. This will help you avoid accidents or mistakes that could cause damage to the vehicle or harm to yourself or others.

If you are unsure about any aspect of the process, it is recommended to consult a qualified mechanic.

What is The Cost of Repairing An Actuator on A F-150?

The cost of fixing a broken Ford F-150 4×4 actuator will depend on the type of actuator you will purchase and from where you bought it.

You can replace the actuator by yourselfer. To do this you will need to purchase a new one and disassemble the old one to install the new part. For this, you will need tools like a socket set and a wrench set.

On the other hand,  if you want to hire a mechanic to replace the actuator, it may cost $100 per hour. Also, the total cost would include both labor and parts. For instance, if the actuator replacement process requires three hours, then the overall expense would be $300.

Guideline for Ford F-150 4×4 Actuator Maintenance

Here’s a guideline for Ford F-150 4×4 actuator maintenance.

  • Inspect the actuator for any signs of damage, corrosion, or wear. Also, look for any loose connections or wires that may have come undone. If you notice any problems, consider replacing the actuator before proceeding.
  • Clean the actuator by using a gentle brush or a soft cloth to get rid of any dirt or debris that might be on it. Be careful not to damage any of the components, and avoid getting any water or cleaning solution into the actuator itself.
  • Apply a small quantity of silicone-based lubricant on the moving parts of the actuator to prevent friction and wear. Don’t  use petroleum-based lubricants, as they can harm the components of the actuator.
  • Check if the actuator is functioning properly by testing it.

Engage and disengage the 4×4 system several times to ensure that the actuator is functioning properly. If you notice any problems, consider performing a thorough diagnosis to find out the root of the problem.

  1. Check the owner’s manual for detailed instructions. It provides more detailed information on inspecting and replacing the actuator and other maintenance tasks.

By following these guidelines, you can ensure that your Ford F-150’s 4×4 actuator remains in good working condition for engaging and disengaging the 4×4 system as needed.


Can You Bypass The 4WD Actuator?

Yes, you can bypass the 4WD actuator. To bypass, the most effective method is to disconnect the vacuum lines from the actuator and block them. You can do this by plugging the supply line and the line into the actuator using a pop rivet head. This means that the system’s vacuum supply will be turned off entirely. In essence, only the supply line needs to be blocked.

How Do You Diagnose A 4×4 Problem?

Diagnosing a 4×4 problem involves inspecting the transfer case, driveshaft, differentials, and axles for visible damage or wear. Testing the 4×4 system’s engagement and disengagement can help identify the underlying issue. A qualified mechanic with experience in 4×4 systems should perform the diagnosis to determine the exact problem and recommend the necessary repairs.

What Can Cause 4WD Not to Engage?

Issues that can cause a 4WD system not to engage are a faulty transfer case, a disconnected or damaged vacuum line, or a malfunctioning electronic control module. Other common causes include low fluid levels, worn-out or damaged driveshafts, or damaged wheel bearings. Get assistance from a professional to identify and repair the problem in order to guarantee secure driving.


In conclusion, you may face Ford F-150 4×4 actuator problems for several reasons as we have noted down.

Follow our guidelines to fix the problem as soon as possible to ensure optimal performance of the four-wheel drive system.

Remember to stay vigilant when it comes to maintaining your vehicle, and don’t hesitate to seek the help of a professional mechanic if needed.
