Ford F150 radio will not work if the fuse is blown, the wiring connection is loose and the solder joint is not properly connected. It is also important to check if the SYNC system is working properly or requires any update. The F150 radio will also not work if the radio unit is frozen. Even battery issues can make the Ford F150 radio not work. If none of these are the main reason then a damaged radio is the source.
Now, after knowing the reasons for the Ford F150 radio not working, you need to successfully solve this problem. To know more about this, let’s get started.
9 Major Reasons for Ford F150 Radio Not Working
There are several common factors that can lead to the Ford F150 radio malfunctioning. These include blown fuses, loose wiring, and inefficient solder connections. Let’s discuss the issues along with their solutions below.
Blown Fuse
The most common reason for the Ford F150 radio to stop working is a blown fuse. Whenever there is an overflow of current then the fuse will blow and cause a disruption to this flow. This also happens if the fuse declines in quality and eventually blows. Using a new but poor-quality fuse can also be a reason for a blown fuse.
To verify if the fuse is blown you have to locate the fuse in the fusebox and then check its condition. If it darkens or has its internal link separated then the fuse is blown.

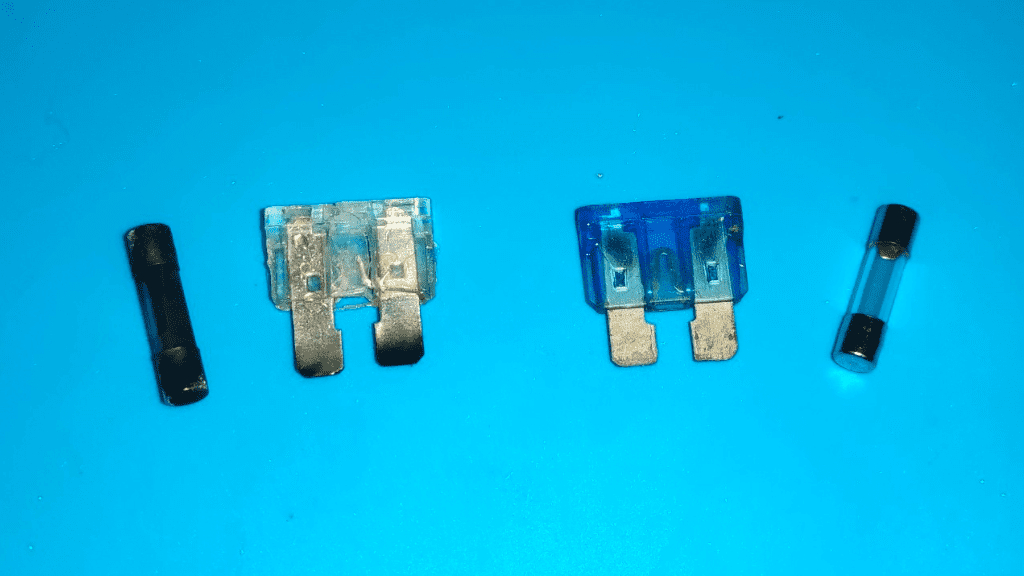

The image shows the condition of the fuses. The fuses on the left are blown. These are darkened and have the internal link disconnected.
Solution: Replace the Fuse
To get your Ford F150 radio back to working just replace the fuse. The first step is to locate the fuse. But where you find this fuse depends on the model of the F150. The following table clearly shows the location of fuses based on F150 models.
| Ford F150 Model Year | Location in Ford F150 | Fuse Number |
| 1992 – 1996 | The bottom of the Dashboard left side of the steering wheel | 11 |
| 1997 – 2003 | 15 | |
| 2004 – 2008 | Front Passenger Side | 31 [Power supply to the radio]7 [Protects circuit that provides power supply to the radio]4 [Fuse for DVD power] |
| 2009 – 2014 | 39, 28 | |
| 2015 – 2020 | 33 [Protects the radio]14 [Protects the amplifier] | |
| 2021 – 2022 | 32 [Power to the radio]28 [Power to the amplifier] |
In F150 models with multiple fuse numbers such as 2004-2008, 2021 – 2022, you need to diagnose all the fuses listed and check if it’s blown.
Following are the steps for replacing the Ford F150 fuse.
Tools Required:
- Needle-nose Pliers/ Screwdriver
Step 1: Locate the fuse box, open the cover, and diagnose the fuse.
Step 2: Grab the screwdriver or plier to pull out the fuse and then discard it.
Step 3: Get the new fuse. Make sure that the fuse has the same amperage rating as the old one.
Step 4: Connect the new fuse in the required position and make sure that it fits properly.
Step 5: Close the fuse box. Finally, turn on the truck and check the radio to see if it is functioning properly.
Loose Wiring
Once you verify that the fuse is not blown, check the wiring around the radio. Ford F150 radio will not work properly if the wiring connection is loose or the wires themselves are damaged. This happens due to continuous vibration or prolonged use. Either way, this will disrupt the current flow and lead to the Ford F150 radio not working.
Solution: Replace the Wiring
By replacing the damaged wiring the Ford F150 radio will start working. To work on the wiring first, you need to remove the radio and then look for the wiring connection.
- If the wiring is loose, then just tighten them
- If the wiring is damaged, then replace them
Following are the steps for fixing the wiring issue in Ford F150 Radio.
Step 1: Prior to any work, disconnect the negative battery cable to ensure personal safety and prevent potential electrical shock or damage to the electrical system.
Step 2: Begin by removing the trim panel surrounding the radio. Gently pry it off using a trim removal tool or a flathead screwdriver to avoid causing any damage.
Step 3: Locate the wiring harness connected to the back of the radio. Unplug it by pressing the release tab and pulling the connector out.
Step 4: After you find the wiring, grab the multimeter to check for any wire internal damage. Touch the probes at the end of the wire.
Step 5: If you identify any damaged wire, then remove it.
Step 6: Identify and remove any mounting screws or brackets that secure the radio in place. This will allow you to slide the radio out of the dash with caution.
Step 7: To complete the process, disconnect any remaining wiring or antenna
connections from the back of the radio. Take care not to force or damage any connectors during this step.
Inefficient Solder Flow
Ford F150 radio will not work properly if the solder flow is inefficient. This shows the problem in the soldering process. If during the soldering, the solder or the glue you are adding does not get the flux properly then it will not flow.
Bad soldering quality means that the radio will not work. Solder flow can also happen due to exposure to cold weather, moisture, and continuous vibration.
Solution: Fix Solder Flow
To fix the solder flow issue you need to do the following.
Tools:
- Soldering iron
- Screwdriver
Step 1: Turn off any electric connection to the radio by unplugging it from the car.
Step 2: Remove the radio from its position. Make sure to not damage the radio while removing it.
Step 3: After removing the radio, open it up and check the solder points. You need to find the points where soldering is required again.
Step 4: Grab a soldering iron and heat the busted solder joints. Heat them up, and melt the old, damaged solder.
Step 5: Apply new solder to the solder points and make sure to spread it evenly.
Step 6: Wait for a few minutes and let the newly applied solder cool down.
Step 7: Assemble back the radio and plug it back into the truck.
Step 8: Turn on the power and then test the radio to see if it is working properly.
If you want to have a visual demonstration then check this video.
Problem with Speaker
If the Ford F150 radio has a functioning fuse and no problem with the wiring then you are not listening to anything because of damaged speakers. You can verify this by checking the radio unit. If there is a graphical display of the sound output and the bars are moving then the radio is functioning perfectly. It shows that the radio is sending out a signal but your speakers cannot receive it.
Solution: Replace Speaker
The solution is to replace the Ford F150 speakers. Normally, the Ford F150 comes with around 8 speaker systems.
- 1 3.5-inch centre speaker
- 2 6 x 9 inches speakers on the driver-side door
- 2 5.5 inches speakers on the rear door
- 2 pillar tweeter
- 1 8-inch Sony subwoofer
We are going to cover the replacement procedure for the center, driver-side, and rear door speakers.
Following are the steps for replacing the center speaker on Ford F150.
Tools:
- Prying Tool
- T20 Torx Socket
- T Handle
- Pliers
Step 1: Grab the prying tool to remove the speaker cover on the dash.
Step 2: After removing the cover, you will find the center speaker. Get the T20 Torx socket and the T Handle.
Step 3: Use the Torx socket and T Handle to remove the bolts from the speaker.
Step 4: Grab the speaker and bring it out. Unplug the connector beneath the speaker.
Step 5: Remove all the wires and connectors from the old speaker.
0Step 6: Get the new speaker and connect it to the corresponding wires from the old speakers.
Step 7: Plug the wire inside and add it to the connector.
Step 8: Connect back the bolts to the speaker
Step 9: Put the cover over and then check the speaker quality.
For a visual demonstration, you should follow this video.
Now following are the steps of replacing the speaker on the driver-side door of the 2016 Ford F150.
Tools:
- 7mm socket and extension
- Ratchet
- Flathead Screwdriver
- Pick Tool
Step 1: Grab the flathead screwdriver and pry out the removable plastic panel with the driver-side door.
Step 2: After removing the plastic panel, you will find around seven 7mm screws.
Step 3: Using the 7mm extension and socket, remove the screws.
Step 4: Then remove the remaining plastic panel.
Step 5: Disconnect the window switch next and then push and pull down the power door lock switch tab.
Step 6: Disconnect the door handle.
Step 7: Press the tab connected to the speaker and disconnect it.
Step 8: Grab the 7mm extension and socket to remove the 7mm bolts that hold the speaker.
Step 9: Bring out the speaker.
Step 10: Get the new speaker. Make sure to put the top end first for easy insert.
Step 11: Connect back the 7mm bolts and tighten them properly. Reconnect back to the tab.
Step 12: Reconnect back the door lock, door handle, and window switch.
Step 13: Keeping the alignment pins in position, put back the plastic panel to the door.
Step 14: Connect back the 7mm bolts with the plastic panel.
Step 15: Connect the remaining plastic panel and check the quality of the speaker.
If you want a video guide on the process then follow this
Following are the steps for replacing the speakers of the rear side door on a 2016 Ford F150.
Tools:
- Screwdriver
- Drill Machine
- 7mm socket
Step 1: Grab the screwdriver and pry open the door panel. While removing the panel, make sure to put the screwdriver at the side shown (marked with the red arrow) in the image below. Do not put your screwdriver on the opposite side on the right, it will break the panel.
Step 2: Remove the panel that is immediately beneath this plastic panel.
Step 3: Count the number of 7mm screws in the door. There should be seven such screws. Grab a drill machine with a 7mm socket inside it.
Step 4: Remove the 7mm screws and lift up the entire door panel.
Step 5: Press the tab of the door window harness and pull the latch of the door handle.
Step 6: Grab the drill once again and remove the 7mm screws of the speaker.
Step 7: Before you put in the new speaker, make sure to make it properly mounted.
Step 8: Drill a small hole on the side of the bracket where you will put the new speaker.
Step 9: Put the speaker on the bracket and then tape the wire harness to the bracket.
Step 10: Connect the new speaker to the door.
Step 11: Put back the 7mm screws and check the speaker has been fitted properly.
Step 12: Now fit the door panel, and connect back the remaining 7mm screws.
Step 13: Connect the entire door panel and keep the alignment pins in position.
For visual guidance check this video.
Reason: Faulty SYNC System
A faulty SYNC system can also cause the F150 radio to not work. Ford SYNC system uses wireless Bluetooth technology to send information between your phone and the F150. It helps to give you voice control over different options such as entertainment, navigation, and settings. Since the SYNC is directly related to the entertainment system, if it stops working then it means the F150 radio will also not work.
Solution: Reset SYNC
You need to reset the SYNC to get the F150 radio to start working. There are two ways you can reset it. There is the regular reset and master reset.
Following are the steps of regular reset.
Step 1: Press the ‘Power’ and ‘Seek Up’ buttons at the same time. Hold them down. You can also use the ‘Volume Down’ button.
Step 2: If your screen has frozen with the Ford display on, hold the button until the screen goes black entirely.
Step 3: But if your system has frozen with the screen black, hold the button until the Ford logo comes back to the screen.
Step 4: Wait for about 05 minutes for the entire system to complete the reset.
Step 5: Finally, press the power button to turn back the audio.
For a visual demonstration, you can check this video.
If your radio is still not working, then it is time for a master reset. However, we would suggest diagnosing all the other sources before going for the master reset. The master reset is also recommended when
- Regular reset or no other methods work
- You are going to sell your F150
- You just bought a pre-owned F150
- Rented or are going to return a rented F150
With that cleared out, the following are the steps of master resetting the SYNC system.
Master Resetting the Gen 3 SYNC system
Step 1: Start the engine and make sure that the truck is in Park (P) mode.
Step 2: Press ‘Settings’ on the SYNC display and select the ‘General’ icon.
Step 3: After that tap on the ‘Master Reset’ icon. You will receive a warning, confirm it, and go for the reset.
Step 4: As soon as the reset begins, the screen will go black. Wait for a few minutes and the master reset will complete. Once done, the system will return back to the normal screen.
For a video demonstration you can check this
Master Resetting the Gen 4 SYNC system
Step 1: Start the engine and press ‘settings’ on the SYNC display.
Step 2: Tap ‘Reset’ and then ‘Master Reset’.
Step 3: After you tap it, there will be a confirmation message. Accept it and wait until the master reset is done.
Reason: Radio Unit Got Frozen
In some cases, your radio unit will get frozen and cause the F150 radio to not work. It can be due to a disparity in the internal temperature of the unit.
Solution: Force Resetting the Radio Unit
Before you try to reboot the entire radio unit, go for the classic solution. Turn off the radio, wait for a few minutes, and turn it back on again. You can also force turn it off by doing the following.
- Press the power and the right search button at the same time
- Hold the buttons for about 10 to 15 seconds
- The screen will turn off and then restart
- Wait until the screen return to its normal state
When it does not work, the next step should be to force reset the F150 radio. Following are the steps.
Step 1: Turn off the truck and remove the key from its ignition.
Step 2: Next remove the battery’s negative terminal.
Step 3: Wait for about 05 minutes and then connect back to the negative terminal of the battery.
Step 4: Finally, turn on the engine and check the radio.
You can follow this video for help.
If the F150 radio still does not work then get the radio replaced or go to the mechanic for a solution.
Reason: The SYNC system Needs an Update
Sometimes, the F150 radio suddenly stops working if the system needs an update. Although it tends to auto-update. But once in a while, you need to tap the option manually. An updated system is good for performance.
Solution: Install the Latest SYNC Update
You need to install the latest SYNC update to get the F150 radio back to work. Following are the steps for updating the SYNC system.
Step 1: First, turn on the F150.
Step 2: Enable WiFi scanning by going to Settings.
Step 3: Keep the SYNC account logged in and connect to the nearest WiFi network.
Step 4: Go to ‘Settings’ again and tap ‘General’.
Step 5: Go to the Automatic System Updates and click on ‘Scan for Updates Now’.
Step 6: You will find options for available updates. Tap on an update and wait for it to install.
Reason: Battery Problem
Your Ford F150 radio might not work if there is any problem with the battery. If it is not the issue with the fuse, SYNC system, or the system getting frozen then it can be the battery problem.
The battery is responsible for cranking the starter motor and helping it to run. A problem with this battery can create starting issues.
Now, one would normally expect that issues in the battery will influence starting problems. But if the battery is on its way to gradual decline then it will impact other systems too.
This can happen even if you face no trouble starting the truck. If the truck gets the hint of any problem with the battery, it will start shutting down other systems such as the radio. So, that means your Ford F150 will suddenly stop working.
Solution: Replace the Battery
Truck sensing down battery issues means that the battery will eventually wear down. It is important you take care of the battery. Otherwise, there will be other issues such as the auto start-stop problems.
So, you need to replace it before it suddenly stops working, and your truck is not able to start. The steps are relatively simple.
Just pop the hood, remove the negative terminal first, and loosen the connection. Then bring out the battery, get the new one and connect everything back.
For visual guidance, check this video out.
If you are not comfortable with replacing the F150 battery yourself then seek professional help. It should cost you around $255 to $270. The labour cost is anywhere from $95 to $100 and the part costs around $160 to $170.
Reason: Damaged Radio
If it is not anything else, then definitely your F150 radio is damaged. It can happen from continuous use, manufacturing defect or any other external factor. This should be your last resort, after you have verified all the sources and then came to the conclusion that the radio itself is damaged.
Solution: Replace Radio
You need to replace the radio unit so that the radio starts working. Following are the steps of replacing the radio on Ford F150.
Tools:
- Scraper
- Screwdriver
- Cutter
Step 1: Start by removing the top rubber cover of the dashboard using a plastic trim remover or a flat screwdriver. Be careful not to damage the interior.
Step 2: Locate and remove the two top mounting screws using a ratchet with a seven-millimeter socket.
Step 3: Pop off the plastic vent covers on both sides of the assembly to access the middle piece. Gently pull it towards yourself, releasing the plastic clips and holding it in place.
Step 4: Disconnect the hazard lights wiring by pressing the small tab underneath and pulling it out. This will create enough space to access the factory radio.
Step 5: Consider disconnecting other wires from the bottom for more workspace if desired. Press the clips and pull out the connectors to disconnect them.
Step 6: With the wiring disconnected, locate and remove the four seven-millimeter screws holding the factory radio in place. Two screws are on the top, and two are on the bottom.
Step 7: Once the screws are removed, the factory radio can be pulled out completely. Disconnect the remaining wires and the radio antenna by pressing the clips and pulling them out.
Step 8: If replacing the radio unit with a different one, such as a used Ford F-150 unit, make sure to obtain the radio code beforehand to avoid any issues. This applies to factory radios, as they may be locked without the code.
Step 9: If installing an aftermarket radio, acquire the proper wiring harness and radio kit to ensure compatibility and ease of installation.
If you want to get a visual demonstration of this process then check this out.
How to Avoid F150 Radio Problems?
If you are frustrated with issues on your Ford F150 radio then these are some of the ways you can avoid F150 radio problems.
- After turning it off, wait for a few minutes to start your truck.
- Do not turn on the engine immediately after opening the vehicle door. Wait for the audio system to start up, give it a few minutes, and then start the engine.
- Wait for a few minutes when you want to sync your phone to Ford F150.
FAQs
Can a Dead Battery Cause the Ford F150 Radio to Stop Working?
No, a dead battery can not cause the Ford F150 radio to stop working. The battery provides the electric current to start the starter motor which in turn powers the engine to start. So if the battery is dead then your F150 is not going to start. Without starting the truck, you can not find out the condition of the radio.
Can I Install a Backup Camera Through the Ford F150 Radio System?
Yes, you can install a backup camera through the Ford F150 radio system. After running the wires from under the truck, an integral ground connection must be established. Then you do soldering and insulation of the wires. After that, you have to take the radio out and let the wires pass through, and make the necessary connections for seamless operation. If the connection is made properly, the radio will not stop working.
Can a Faulty Ignition Switch Cause Ford F150 Radio to Stop Working?
No, a faulty ignition switch can not cause the Ford F150 radio to stop working. The ignition switch is particularly focused on starting the engine by connecting the voltage-providing circuit to the starter motor. If there is an issue with the ignition switch then the Ford F150 engine will have trouble starting. The radio will be directly affected if the fuse does not work.
Conclusion
This guide covers all the solutions for when your Ford F150 radio stops working. If you are unsure about the issues with your radio, make sure to diagnose it properly and find a solution. If you are not comfortable working on the radio system yourself, it is best to seek help from professionals. Lastly, remember to follow preventive measures to avoid future radio problems and consider the associated repair costs.
